All types hydraulic hoses s are available in HYRUBBERS. The item SAE 100 R2A / DIN EN 853 2ST STANDARD is on hot sale, please visit our website to see more information.
Size: 1/4"–2”
Working pressure: 400bar–80bar
Lenght: 20m/40m/50m/100m
SAE 100 R2A / DIN EN 853 2ST
INNER TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Two braid of high-tensile steel wire
COVER: Black Neoprene Blend
WORKING TEMPERATURE: From -40℃ up to +100℃
SPECIFICATION:
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | MIN B.R | Weight | Length | |||
inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
6 | 1/4″ | 6.4 | 12.7 | 17.5 | 40 | 5800 | 160 | 22840 | 100 | 0.42 | 50/100 |
8 | 5/16″ | 7.9 | 14.3 | 19.1 | 36 | 5250 | 140 | 20000 | 114 | 0.51 | 50/100 |
10 | 3/8″ | 9.5 | 16.7 | 21.4 | 33.1 | 4800 | 132 | 18840 | 127 | 0.6 | 50/100 |
13 | 1/2″ | 12.7 | 19.8 | 24.6 | 27.6 | 4000 | 110 | 15720 | 178 | 0.74 | 50/100 |
16 | 5/8″ | 15.9 | 23 | 27.8 | 25 | 3630 | 100 | 14280 | 200 | 0.86 | 50/100 |
19 | 3/4″ | 19 | 27 | 31.8 | 21.5 | 3120 | 85 | 12280 | 240 | 1.04 | 50/100 |
25 | 1″ | 25.4 | 34.9 | 39.7 | 16.5 | 2400 | 65 | 9420 | 300 | 1.42 | 50 |
32 | 1-1/4″ | 31.8 | 44.5 | 50.8 | 12.5 | 1820 | 50 | 7140 | 419 | 2.23 | 18 to 40 |
38 | 1-1/2″ | 38.1 | 50.8 | 57.2 | 9 | 1310 | 36 | 5140 | 500 | 2.74 | 18 to 40 |
51 | 2″ | 50.8 | 63.5 | 69.8 | 8 | 1160 | 32 | 4560 | 630 | 3.5 | 18 to 40 |
PACKAGE:

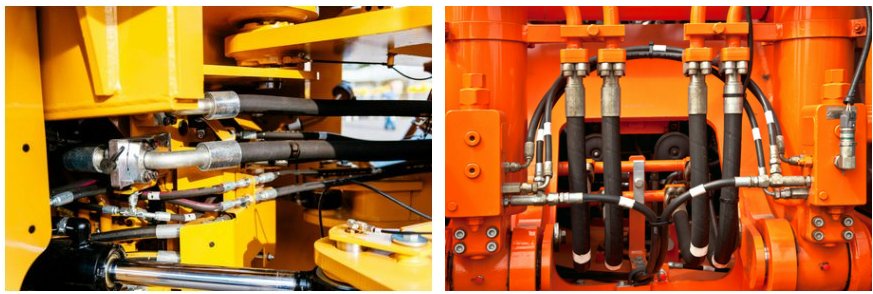

PRODUCT APPLICATION:

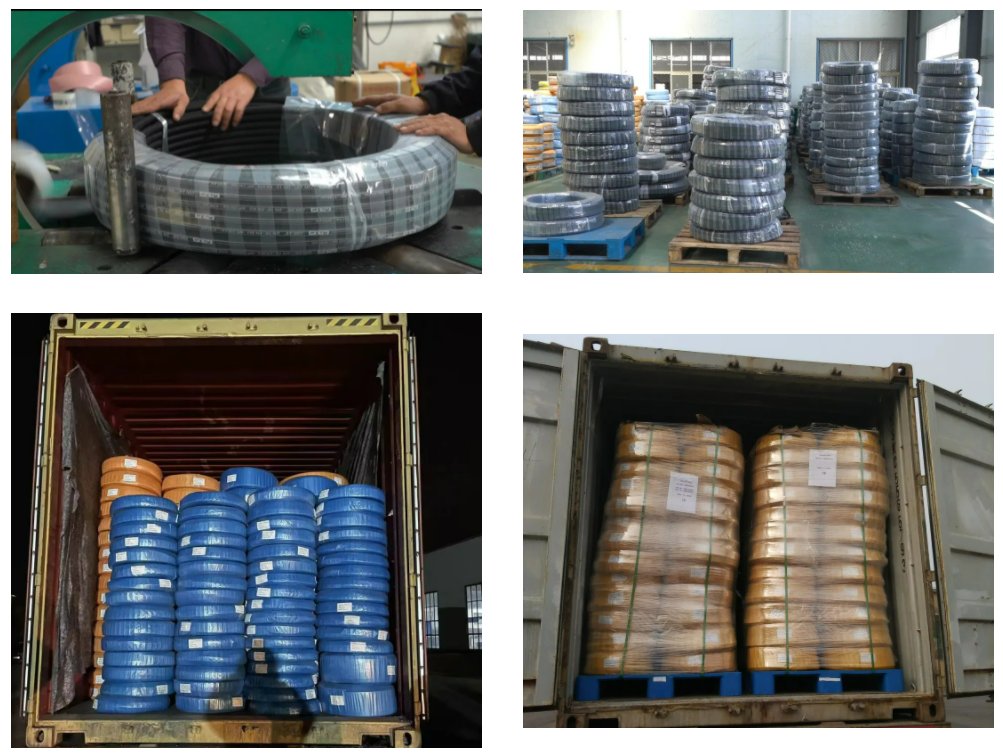

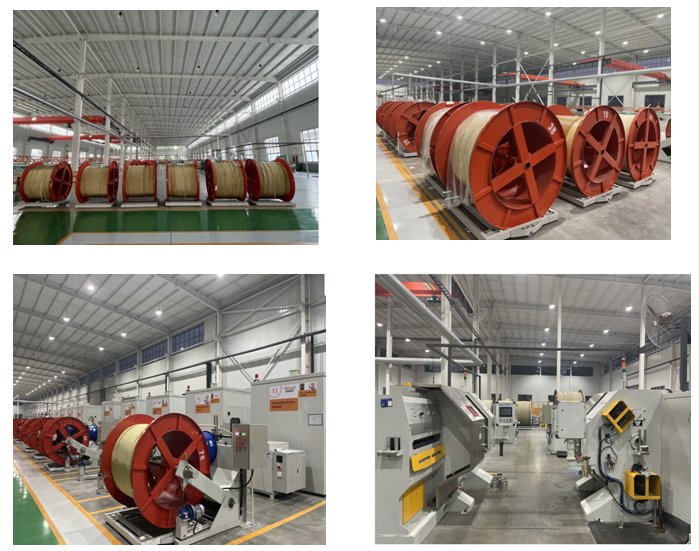

HYRUBBERS WORKSHOP:
WHY CHOOSE US?
●17+ years experience in rubber hydraulic hose and pvc hose industry.
●Main products: hydraulic hose, welding hose, oil hose, suction hose, etc.
●Located in Qingdao,China, closed with the seaport
●32 steel braiding machine, 2 sprial machine for 4 wire hoses, and 2 cotton braiding machine
●Outstanding R&D engineers team.
●OEM available.
●Consistent and well trained team.
●Experienced sales team for different markets.
●ISO9001 approved production process.
MARKET:
Based on products and services,Continuously optimize and improve enterprise management and technology.Committed to eliminating errors or defects in hose production process.
To create more value-added products for our partners Customer groups that have served already involve many countries and regions in the world.
