You can purchase full types of industrial hoses online with competitive price from HYRUBBERS. Waiting for your inquiry for GOST 6 OIL SUCTION &DISCHARGE HOSE.
Size: 25-203mm
Working pressure: 6bar/10bar
Lenght: 4-60m
OIL SUCTION & DISCHARGE HOSE
CONSTRUCTION: Inner rubber ayer, fabric cloth layer and outer rubber layer
SIZE: 25-203mm
WORKING PRESSURE: 6bar/10bar
LENGTH: 4-60m
APPLICATIONS: This hose is suitable for sucking and discharging water or general neutral liquid for mine, factory, construction and conservancy engineering.
SPECIFICATION:
SIZE | I.D | W.P | Size of soft joint | Length | ||||
6BAR | 10BAR | Length | Tolerance | m | Tolerance | |||
mm | Min | Max | Layers | mm | mm | mm | ||
25 | 23.8 | 26.2 | 2 | 2 | 100 | ±15 | 4–60 | ±100 |
32 | 30.8 | 33.2 | 2 | 2 | 100 | ±15 | 4–60 | ±100 |
38 | 36.8 | 39.2 | 2 | 2 | 100 | ±15 | 4–60 | ±100 |
51 | 49.8 | 52.2 | 2 | 2 | 100 | ±15 | 4–60 | ±100 |
64 | 62.5 | 65.5 | 4 | 4 | 100 | ±15 | 4–60 | ±100 |
76 | 74.5 | 77.5 | 4 | 4 | 100 | ±15 | 4–60 | ±100 |
89 | 87.5 | 90.5 | 4 | 4 | 100 | ±15 | 4–60 | ±100 |
102 | 100 | 104 | 4 | 4 | 100 | ±15 | 4–60 | ±100 |
127 | 125 | 129 | 6 | 6 | 100 | ±15 | 4–20 | ±100 |
152 | 150 | 154 | 6 | 6 | 100 | ±15 | 4–20 | ±100 |
203 | 200.5 | 205.5 | 6 | 6 | 100 | ±15 | 4–10 | ±100 |

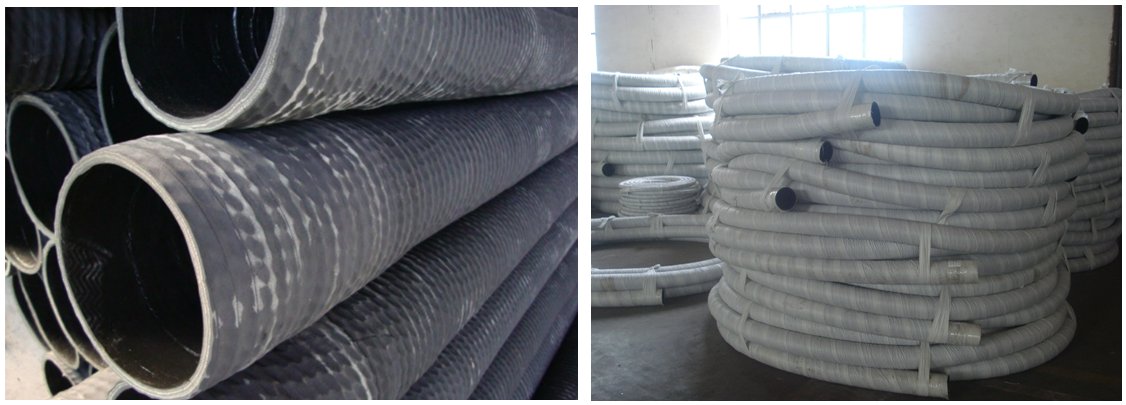

HOSE PHOTO:

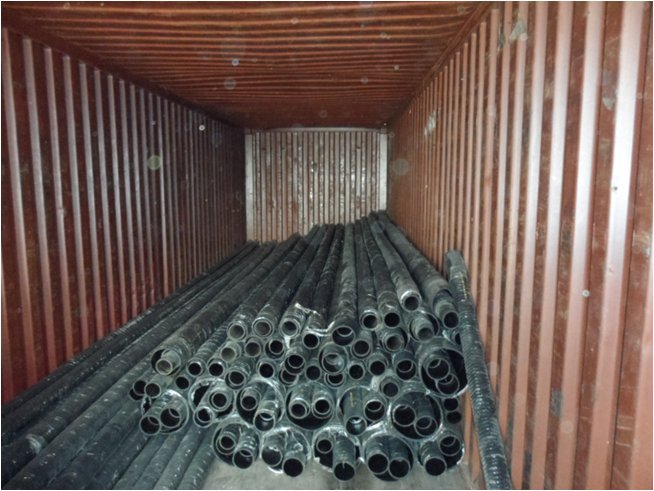

LOADING THE CONTAINER:
WHY CHOOSE US?
●17+ years experience in rubber hydraulic hose and pvc hose industry.
●Main products: hydraulic hose, welding hose, oil hose, suction hose, etc.
●Located in Qingdao,China, closed with the seaport
●32 steel braiding machine, 2 sprial machine for 4 wire hoses, and 2 cotton braiding machine
●Outstanding R&D engineers team.
●OEM available.
●Consistent and well trained team.
●Experienced sales team for different markets.
●ISO9001 approved production process.
DELIVERY:
HYRUBBERS built excellent transportation newt work. The rubber hose could be delivered to clients by sea, by air, by highway transportation, to make sure the clients get the rubber hose in time.
