Buy industrial hoses from China with competitive price and high quality in HYRUBBERS. We are manufacturer and factory of LPG hose/gas hose.
Size: 1/4"–1”
Working pressure: 20bar
Lenght: 50m/100m
Weight: 0.17–0.83kg/m
Color:orange, black
LPG HOSE
TUBE: SBR / NBR / EPDM
REINFORCEMENT: One or two layers of high strength fiber braid reinforcement.
COVER: SBR / NBR / EPDM
STRUCTURE:
-Interior lining adopt LPG-endurable, oil-endurable, breathabilityen durable formula;
-Exterior lining of a specified duration, use special rubber which endure whether changing.
WORKING TEMPERATURE: -10℃ ~ 90℃
APPLICATION: For commercial and family gas cooker, oven, the connection of gas system of industrial deice.
HOSE SURFACE: Orange or others; Fabric or smooth surface.
SPECIFICATION:
ID (mm) | ID (inch) | Wall (mm) | WP (bar) | BP (bar) | Radius (mm) | Weight (kg/m) |
6 | 1/4″ | 3,5 | 20 | 50 / 60 | 35 | 0.17 |
8 | 5/16″ | 3,5 | 20 | 50 / 60 | 50 | 0.25 |
10 | 3/8″ | 3,5 | 20 | 50 / 60 | 60 | 0.29 |
13 | 1/2″ | 4,0 | 20 | 48 | 60 | 0.37 |
13 | 1/2″ | 5,0 | 20 | 60 | 70 | 0.42 |
16 | 5/8″ | 4,0 | 20 | 48 | 80 | 0.45 |
16 | 5/8″ | 4,5 | 20 | 60 | 90 | 0.48 |
19 | 3/4″ | 5,0 | 20 | 48 | 110 | 0.58 |
19 | 3/4″ | 5,5 | 20 | 60 | 125 | 0.6 |
25 | 1″ | 5,0 | 20 | 48 | 130 | 0.72 |
25 | 1″ | 5,5 | 20 | 60 | 150 | 0.83 |

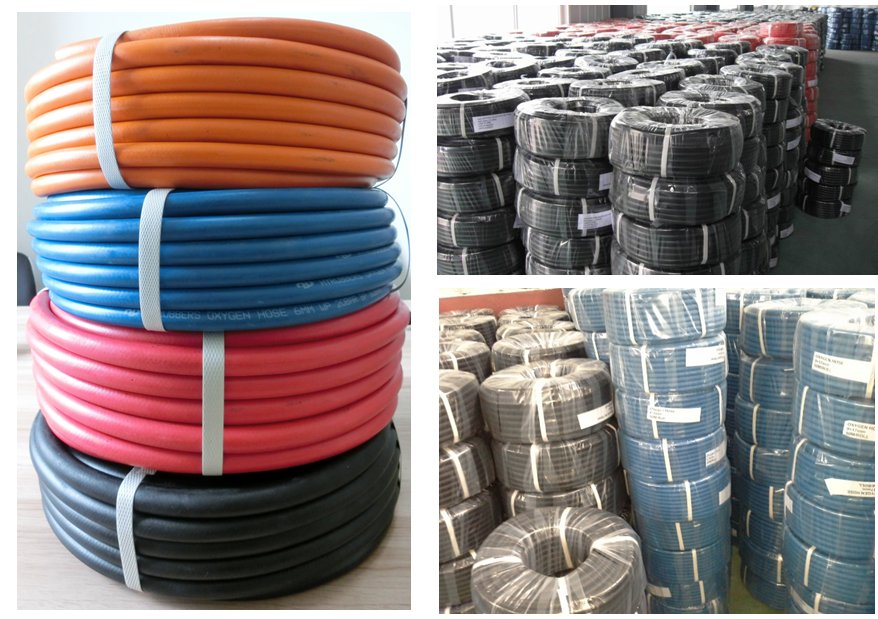

HOSE PHOTO:

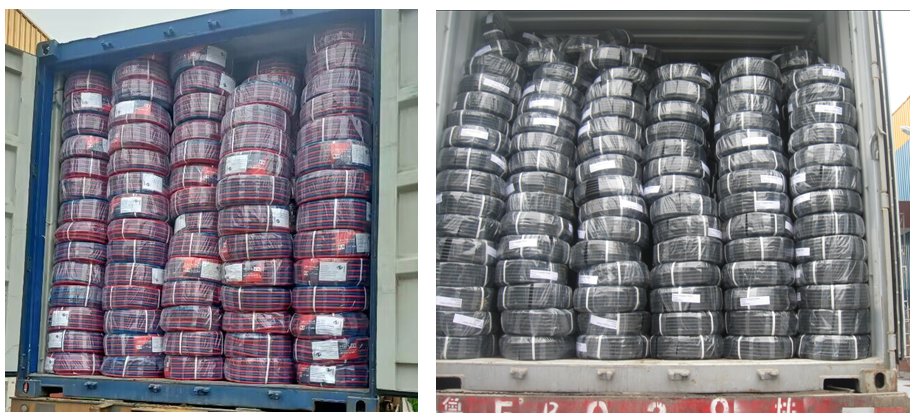

LOADING THE CONTAINER:
WHY CHOOSE US?
●17+ years experience in rubber hydraulic hose and pvc hose industry.
●Main products: hydraulic hose, welding hose, oil hose, suction hose, etc.
●Located in Qingdao,China, closed with the seaport
●32 steel braiding machine, 2 sprial machine for 4 wire hoses, and 2 cotton braiding machine
●Outstanding R&D engineers team.
●OEM available.
●Consistent and well trained team.
●Experienced sales team for different markets.
●ISO9001 approved production process.
DELIVERY:
HYRUBBERS built excellent transportation newt work. The rubber hose could be delivered to clients by sea, by air, by highway transportation, to make sure the clients get the rubber hose in time.
